Write a flow

This page builds acme.process-order: look an order up, have an agent write a thank-you note, then confirm the order with that note. Two tools, one agent, one flow.

The tools

acme.get-order only reads, so it says mutating: false. acme.confirm-order changes something, so it doesn't:

TypeScript
Python

import { defineTool } from '@kindgi/sdk/define';
import type { ToolId } from '@kindgi/sdk/types';
import { z } from 'zod';

const Order = z.object({
  orderId: z.string(),
  customer: z.string(),
  total: z.number(),
  items: z.array(z.object({ sku: z.string(), quantity: z.number().int() })),
});

const ORDERS: Record<string, z.infer<typeof Order>> = {
  'A-100': { orderId: 'A-100', customer: 'ada@example.com', total: 42.5, items: [{ sku: 'mug', quantity: 2 }] },
  'A-200': {
    orderId: 'A-200',
    customer: 'grace@example.com',
    total: 1250,
    items: [
      { sku: 'desk', quantity: 1 },
      { sku: 'lamp', quantity: 2 },
    ],
  },
};

const defined = defineTool({
  id: 'acme.get-order' as ToolId,
  description: 'Looks up an order by id.',
  version: '0.1.0',
  input: z.object({ orderId: z.string().min(1) }),
  output: Order,
  effects: [],
  mutating: false, // only reads
  handler: async ({ orderId }) => {
    const order = ORDERS[orderId];
    if (order === undefined) throw new Error(`No order ${orderId}`);
    return order;
  },
});

if (defined.kind === 'err') throw new Error(defined.error.message);

export default defined.value;

import { defineTool } from '@kindgi/sdk/define';
import type { ToolId } from '@kindgi/sdk/types';
import { z } from 'zod';

const defined = defineTool({
  id: 'acme.confirm-order' as ToolId,
  description: 'Confirms an order and emails the customer.',
  version: '0.1.0',
  input: z.object({ orderId: z.string(), note: z.string().optional() }),
  output: z.object({
    orderId: z.string(),
    status: z.literal('confirmed'),
    note: z.string().optional(),
  }),
  effects: [],
  // no `mutating: false`: it changes something
  handler: async ({ orderId, note }) => ({ orderId, status: 'confirmed' as const, note }),
});

if (defined.kind === 'err') throw new Error(defined.error.message);

export default defined.value;

from pydantic import BaseModel, Field

from kindgi import tool


class OrderQuery(BaseModel):
    order_id: str = Field(alias="orderId", min_length=1)


class Item(BaseModel):
    sku: str
    quantity: int


class Order(BaseModel):
    order_id: str = Field(alias="orderId")
    customer: str
    total: float
    items: list[Item]


ORDERS = {
    "A-100": {"customer": "ada@example.com", "total": 42.5, "items": [{"sku": "mug", "quantity": 2}]},
    "A-200": {
        "customer": "grace@example.com",
        "total": 1250,
        "items": [{"sku": "desk", "quantity": 1}, {"sku": "lamp", "quantity": 2}],
    },
}


@tool(id="acme.get-order", mutating=False)  # only reads
def get_order(input: OrderQuery) -> Order:
    """Looks up an order by id."""
    order = ORDERS.get(input.order_id)
    if order is None:
        raise ValueError(f"No order {input.order_id}")
    return Order(orderId=input.order_id, **order)

from typing import Literal

from pydantic import BaseModel, Field

from kindgi import tool


class ConfirmInput(BaseModel):
    order_id: str = Field(alias="orderId")
    note: str | None = None


class Confirmed(BaseModel):
    order_id: str = Field(alias="orderId")
    status: Literal["confirmed"] = "confirmed"
    note: str | None = None


@tool(id="acme.confirm-order")  # no mutating=False: it changes something
def confirm_order(input: ConfirmInput) -> Confirmed:
    """Confirms an order and emails the customer."""
    return Confirmed(orderId=input.order_id, note=input.note)

The agent

The agent has no tools: it reads the order's customer and total from its input and answers with one sentence.

TypeScript
Python

import { defineAgent } from '@kindgi/sdk/define';
import type { AgentId, Semver } from '@kindgi/sdk/types';

const defined = defineAgent({
  id: 'acme.note-writer' as AgentId,
  version: '0.1.0' as Semver,
  name: 'Note writer',
  description: 'Writes a one-sentence thank-you note for an order.',
  instructions:
    'Write a one-sentence thank-you note to {{ input.customer }} for their order of {{ input.total }} USD. Answer with the note only.',
  capabilities: [{ needs: [{ feature: 'tool-use' as const }] }],
  tools: [],
  retrieval: [],
  guardrails: [],
  parameters: [],
  budget: { maxSteps: 2, maxCostUsd: 0.05, maxWallMs: 30_000 },
});

if (defined.kind === 'err') throw new Error(defined.error.message);

export default defined.value;

from kindgi import Agent

note_writer = Agent(
    id="acme.note-writer",
    version="0.1.0",
    name="Note writer",
    description="Writes a one-sentence thank-you note for an order.",
    instructions=(
        "Write a one-sentence thank-you note to {{ input.customer }} for their order of "
        "{{ input.total }} USD. Answer with the note only."
    ),
    capabilities=[{"needs": [{"feature": "tool-use"}]}],
    budget={"maxSteps": 2, "maxCostUsd": 0.05, "maxWallMs": 30_000},
)

import { defineFlow } from '@kindgi/sdk/define';

const defined = defineFlow({
  id: 'acme.process-order',
  version: '0.1.0',
  name: 'Process an order',
  description: 'Looks up an order, writes a thank-you note, and confirms the order with it.',
  nodes: [
    {
      id: 'order',
      kind: 'tool',
      ref: 'acme.get-order',
      inputMapping: { orderId: { path: 'runInput.orderId' } },
    },
    {
      id: 'note',
      kind: 'agent',
      ref: 'acme.note-writer',
      inputMapping: {
        customer: { path: 'nodeOutputs.order.customer' },
        total: { path: 'nodeOutputs.order.total' },
      },
    },
    {
      id: 'confirm',
      kind: 'tool',
      ref: 'acme.confirm-order',
      inputMapping: {
        orderId: { path: 'runInput.orderId' },
        note: { path: 'nodeOutputs.note.text' },
      },
    },
  ],
  edges: [
    { id: 'e1', from: '$start', to: 'order' },
    { id: 'e2', from: 'order', to: 'note' },
    { id: 'e3', from: 'note', to: 'confirm' },
    { id: 'e4', from: 'confirm', to: '$end' },
  ],
});

if (defined.kind === 'err') throw new Error(defined.error.message);

export default defined.value;

from kindgi import Flow

process_order = Flow(
    id="acme.process-order",
    version="0.1.0",
    name="Process an order",
    description="Looks up an order, writes a thank-you note, and confirms the order with it.",
    nodes=[
        {
            "id": "order",
            "kind": "tool",
            "ref": "acme.get-order",
            "inputMapping": {"orderId": {"path": "runInput.orderId"}},
        },
        {
            "id": "note",
            "kind": "agent",
            "ref": "acme.note-writer",
            "inputMapping": {
                "customer": {"path": "nodeOutputs.order.customer"},
                "total": {"path": "nodeOutputs.order.total"},
            },
        },
        {
            "id": "confirm",
            "kind": "tool",
            "ref": "acme.confirm-order",
            "inputMapping": {
                "orderId": {"path": "runInput.orderId"},
                "note": {"path": "nodeOutputs.note.text"},
            },
        },
    ],
    edges=[
        {"id": "e1", "from": "$start", "to": "order"},
        {"id": "e2", "from": "order", "to": "note"},
        {"id": "e3", "from": "note", "to": "confirm"},
        {"id": "e4", "from": "confirm", "to": "$end"},
    ],
)

nodes are the steps. Each has an id (unique in the flow), a kind and a ref: the id of the tool or agent it runs. In Python, ref can also be the Tool or Agent object you import.
edges connect them. $start and $end are where the run enters and leaves; an edge without a condition fires when its source step completes.
inputMapping builds each step's input from the run's input (runInput.…) and earlier steps' outputs (nodeOutputs.<step>.…). See Pass data between steps.

The shape is checked when the file loads: ids, edges between steps that exist, $start and $end, no cycles. That the tools and the agent exist is checked when a run starts: a run of a flow that names a tool your tenant doesn't have is refused before anything runs.

Run it

With kindgi dev running in the pack, start a run from a second terminal:

kindgi runs start --flow=acme.process-order --input='{"orderId":"A-100"}'

{
  "id": "f35d0699-00d8-4e85-944c-e0c9da3ce8e5",
  …
  "flowId": "acme.process-order",
  "flowVersion": "0.1.0",
  "status": "completed",
  "dryRun": false,
  …
  "output": {
    "note": "Thank you for your order of $42.50, ada@example.com!",
    "status": "confirmed",
    "orderId": "A-100"
  },
  …
}

The command waits for the run to finish. The flow declares no output, so the run returns the output of the step that reached $end: here, acme.confirm-order's.

The agent step

An agent step runs one turn of the agent, as a run of its own (a child of the flow's run). The agent gets the step's input twice: as structured input, which {{ input.customer }} in its instructions reads, and as its user message (the input as JSON). Give an agent its input has the details.

The step's output has the answer as text, and as output when the agent declares a typed answer, plus the turn's runId. Without a model provider, dev-echo answers, and the note is the agent's input echoed back.

Change it

Save a file and kindgi dev loads the new version; the next run uses it, with no restart. A run already in flight keeps the version it started on. Change version when what callers send or get back changes, not on every save.

In the console

A project's Flows page lists its flows, each at its latest live version: "2 flows.", and for each its name, its latest version, its steps in words ("3 steps: 2 agents, 1 loop") and what it pins ("Pins 1 agent").

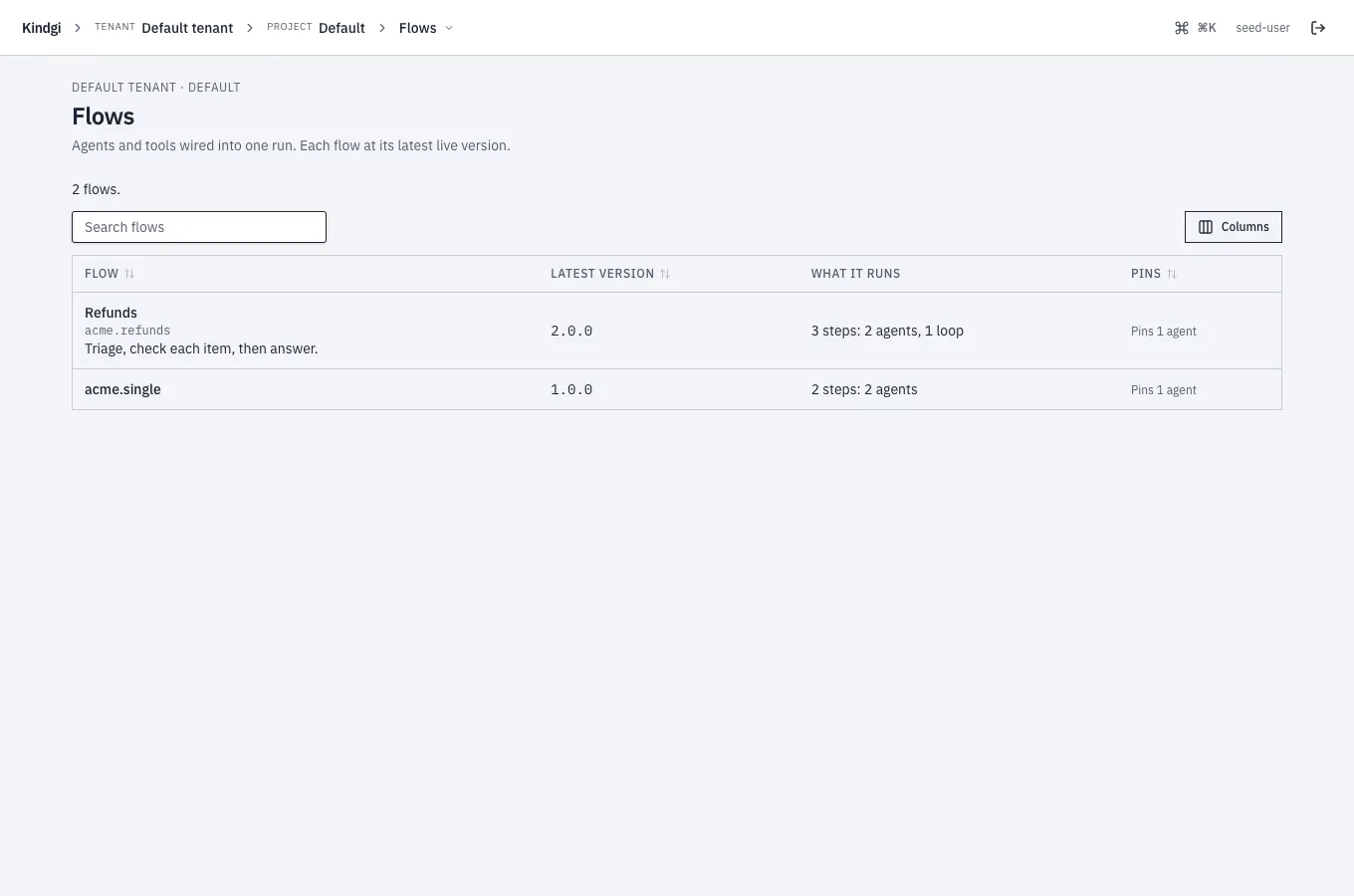

The Flows page: "2 flows.", Refunds (acme.refunds, "Triage, check each item, then answer.") at 2.0.0 with 3 steps: 2 agents, 1 loop, and acme.single at 1.0.0 with 2 steps: 2 agents, each pinning 1 agent.

A flow's page draws the version as a graph, from Start to End: each step with what it runs and at which version ("demo.echo-agent, pinned at 1.0.0"), and a loop in words ("For each item of runInput.items, at most 50 times: demo.echo-agent, pinned at 1.0.0"). Below it:

What 2.0.0 runs: the agents and tools at the versions "Fixed when this version was published: every run of it uses these versions."
Versions: the live ones, the latest marked, with what each runs: "3 live; runs that name no version use the latest, 2.0.0. Unregistered versions aren't listed: open one by its number."
Its runs → and Runs of 2.0.0 →, the runs list filtered.

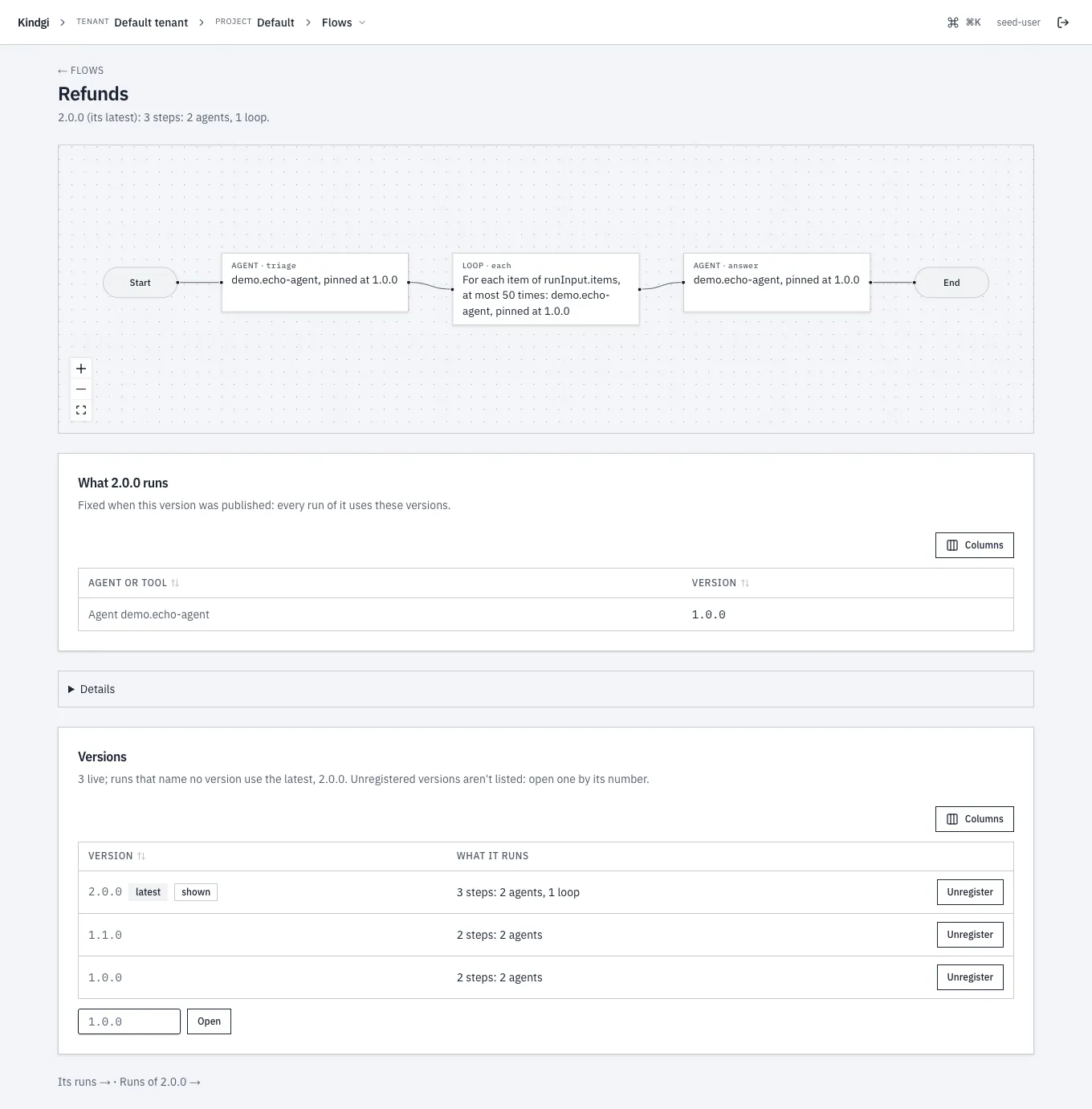

Refunds' page at 2.0.0: the graph Start, triage, a loop over runInput.items, answer, End; What 2.0.0 runs (demo.echo-agent 1.0.0); and Versions: 2.0.0 (latest), 1.1.0 and 1.0.0, each with Unregister.

For flow admins, each version has Unregister. Its dialog says what changes:

Unregister 1.0.0?
Runs that name no version keep using 2.0.0.
Runs that name 1.0.0 are refused, a schedule's included; runs already going finish. It's no longer listed here; it can be reinstated from its own page.

While the dialog is still open, Reinstate it undoes it. Later, the version opened by its number says "1.0.0 is unregistered", since when, and "Runs that name it are refused, runs that name no version don't use it, and it isn't listed.", with Reinstate.

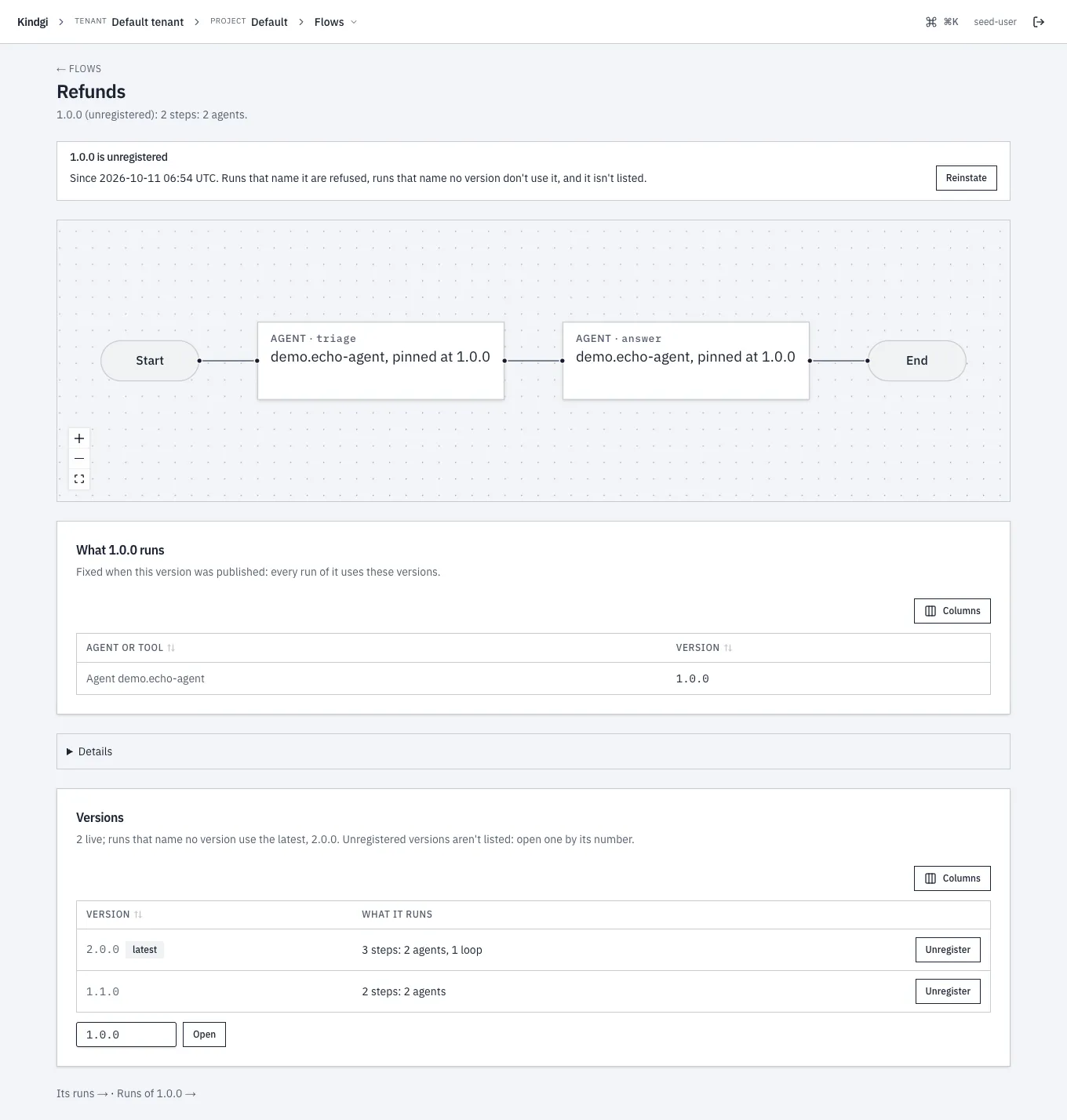

Version 1.0.0 opened by its number: "1.0.0 is unregistered", since when, that runs naming it are refused, and Reinstate, above its graph.

Unregistering a flow's only live version takes it off the list, and its page says "No version of this flow is live": "Every version is unregistered, so it isn't listed and runs that name no version are refused. Open a version by its number to reinstate it, or publish a new one."
