Run with authorization

When you finish this page, your runtime checks every request against who may read, write or administer each project, with OpenFGA running next to it.

A self-hosted runtime checks one thing on each request by default: the API token. Whoever holds it can do anything in its tenant. Authorization adds a second check, per resource, kept in OpenFGA: who may read, write or administer each project and what's in it.

What it gives, and what it doesn't

Authorization is for several people and teams sharing one deployment:

• People and service accounts, each with their own keys. A tenant admin adds people, who sign in to the console and make their own API keys, and service accounts for pipelines and apps (People, API keys and service accounts). The runtime's seed user (KINDGI_SEED_USER_ID) is the first tenant admin.
• Every request is checked against what its caller may do: tenant admin, tenant member, a role on a project, or a reviewer role. Lists hold only what the caller may read.
• Every decision is recorded, allowed or denied, with who asked, what for and why (The access audit).
• Registering an approval reviewer takes a tenant admin.
• A team can have a role on a project through the API (Team grants). The console doesn't offer it.

Turn it on when more than one person or system uses a deployment. Leave it off if one operator is all you need: you'd run OpenFGA for little else. kindgi dev runs without it.

Before you start

• A runtime set up as in Self-host Kindgi, with its kindgi Docker network and its kindgi-db Postgres container. DB_PASSWORD is that Postgres's password.
• Runtime 0.1.4.1 or later. On a managed Postgres whose database user has neither BYPASSRLS nor superuser, 0.1.6 and 0.1.7 don't start with authorization on: use 0.1.8 or later there.
• Docker, to run OpenFGA.

Run OpenFGA next to the runtime

Run OpenFGA v1.22.0. The runtime also works with v1.9.0, but published OpenFGA security advisories affect that version (OpenFGA: security advisories). OpenFGA keeps its data in Postgres: give it its own database on the runtime's server. These commands continue Self-host Kindgi (the kindgi network and the kindgi-db container):

docker exec kindgi-db psql -U kindgi -c 'CREATE DATABASE openfga'

docker run --rm --network kindgi openfga/openfga:v1.22.0 migrate \
  --datastore-engine postgres \
  --datastore-uri "postgres://kindgi:$DB_PASSWORD@kindgi-db:5432/openfga?sslmode=disable"

docker run -d --name kindgi-openfga --network kindgi --restart unless-stopped \
  openfga/openfga:v1.22.0 run \
  --datastore-engine postgres \
  --datastore-uri "postgres://kindgi:$DB_PASSWORD@kindgi-db:5432/openfga?sslmode=disable" \
  --playground-enabled=false

migration done

• CREATE DATABASE openfga gives OpenFGA a database of its own in the runtime's Postgres.
• migrate makes OpenFGA's tables there, and prints migration done. --datastore-engine postgres and --datastore-uri say where its data goes.
• run starts OpenFGA on the kindgi network, as kindgi-openfga. -d runs it in the background, and --restart unless-stopped has Docker start it again after a restart.

Keep OpenFGA on the private network, with no published port: the runtime calls it without credentials unless OpenFGA requires a key (Require a key for OpenFGA, which needs runtime 0.1.8 or later). The playground is off: it's for trying OpenFGA on your own machine. Back up its openfga database with the runtime's (Back up Postgres).

An OpenFGA you already run

To move an OpenFGA from v1.9.0 to v1.22.0, run the new version's migrate against its database, then restart OpenFGA on the new version:

docker run --rm --network kindgi openfga/openfga:v1.22.0 migrate \
  --datastore-engine postgres \
  --datastore-uri "postgres://kindgi:$DB_PASSWORD@kindgi-db:5432/openfga?sslmode=disable"
docker stop kindgi-openfga && docker rm kindgi-openfga

Then start it with the run command from Run OpenFGA next to the runtime. On Postgres it's one migration, which builds an index without locking the table. In our upgrade, the model, every tuple and every permission answer came through unchanged, and v1.9.0 still ran on the migrated database, so going back needs no schema step.

If you set OPENFGA_DATASTORE_MAX_IDLE_CONNS: from v1.11, Postgres's idle connections are set with OPENFGA_DATASTORE_MIN_IDLE_CONNS instead (OpenFGA: configuration).

Point the runtime at it

Set OpenFGA's address in kindgi.env, and restart the runtime:

KINDGI_OPENFGA_API_URL=http://kindgi-openfga:8080

At its first start with it, the runtime creates an OpenFGA store for the tenant, tenant-<tenant id>, and makes the seed user its admin. The startup log says so:

  User:    315d1376-7fbf-4310-83ba-11f204831423 (admin@tenant via FGA bootstrap)

After an upgrade, a start that brings the store up to the new version's model logs one line for it (Operate has the line).

Keep the seed user

With authorization on, keep the seed user the same. Set KINDGI_SEED_USER_ID, or keep KINDGI_API_TOKEN unchanged: the runtime then keeps the token's user across restarts. Each boot makes its seed user a tenant admin. But what was granted to an earlier one stays with that user, such as a project role and the keys minted for them. A runtime started with a new token and no KINDGI_SEED_USER_ID says so when it starts: ⚠ KINDGI_API_TOKEN changed, so it acts as a new user.

When OpenFGA is unreachable, requests that need a check answer 500, with FGA Error: connect ECONNREFUSED …. They work again once it's back.

When the database fails one tenant's permission changes: the runtime sends permission changes to OpenFGA from a queue in Postgres, about twice a second: a grant, a revoke, a new project or a new agent. When it can't read or update one tenant's part of that queue, it logs an error (Logs). Here, with the database out of reach:

{"time":"2026-10-12T06:21:01.457Z","level":"error","severity":"ERROR","subsystem":"authz.outbox","message":"drain: a tenant failed","tenantId":"0b6a3f2e-6c1d-4a8e-9f4b-2d7c5e1a9b30","error":"Tenant-scoped query failed: connection refused (connect ECONNREFUSED …)"}

Excerpt

That tenant's changes stay queued and go on a later pass: none is lost, and other tenants' changes still go. Until then, checks answer from what OpenFGA already has.

• A single line needs nothing: it was a passing database error.
• The same tenant on every pass means its permission changes aren't reaching OpenFGA. Fix what error names on the database side: the connection, a timeout, or the database user's permissions. The changes apply on the next pass, with no restart.

Require a key for OpenFGA

OpenFGA answers whoever reaches it, so anything else on its network could read and write your permissions. OpenFGA can require a key, and the runtime sends it with every call (Authorization: Bearer <key>). This needs runtime 0.1.8 or later: an earlier runtime ignores the setting, and OpenFGA then refuses its calls.

Use OpenFGA 1.14.0 or later with a key, with its playground off: before 1.14.0, the playground page shows the key to anyone who opens it (OpenFGA: Playground Preshared Key Exposure, CVE-2026-40293). Make a key, run OpenFGA with it, and give the runtime the same key:

OPENFGA_KEY=$(openssl rand -hex 32)

docker run -d --name kindgi-openfga --network kindgi --restart unless-stopped \
  openfga/openfga:v1.22.0 run \
  --datastore-engine postgres \
  --datastore-uri "postgres://kindgi:$DB_PASSWORD@kindgi-db:5432/openfga?sslmode=disable" \
  --authn-method preshared --authn-preshared-keys "$OPENFGA_KEY" \
  --playground-enabled=false

In kindgi.env, beside the address:

KINDGI_OPENFGA_PRESHARED_KEY=<the same key>

The key is printable ASCII, without spaces or commas: it travels in a header, and OpenFGA's list of keys is comma-separated. After a restart, the startup lines say what the runtime's calls carry, never the key:

  OpenFGA calls carry its preshared key (KINDGI_OPENFGA_PRESHARED_KEY)

A runtime whose key OpenFGA doesn't hold, or that has none, doesn't start:

kindgi-runtime: fatal: Error: OpenFGA at http://127.0.0.1:63551 refused the server's call (401): set KINDGI_OPENFGA_PRESHARED_KEY to one of the keys OpenFGA runs with (its OPENFGA_AUTHN_PRESHARED_KEYS) and, for an OpenFGA behind Cloud Run IAM, KINDGI_OPENFGA_AUTH=google-id-token.

To change the key with no call refused, use OpenFGA's list of keys, and restart each in turn:

1. Add the new key to OpenFGA's: --authn-preshared-keys "$OLD_KEY,$NEW_KEY". Restart OpenFGA.
2. Set the runtime's KINDGI_OPENFGA_PRESHARED_KEY to the new key. Restart the runtime.
3. Drop the old key from OpenFGA's list. Restart OpenFGA.

On Cloud Run, OpenFGA's IAM adds a second check: OpenFGA behind Cloud Run IAM.

A denied request

A request the check refuses gets 403, with what was asked, on what, and why in details:

{"error":{"code":"permission-denied","message":"Permission denied: actor user:3fc3b945-8957-485b-902d-2950ffbe3139 does not have can_admin on tenant:af0be8c3-f8c2-430a-ba2f-06d3edd574ff","details":{"action":"admin","resource":"tenant:af0be8c3-f8c2-430a-ba2f-06d3edd574ff","reason":"actor user:3fc3b945-8957-485b-902d-2950ffbe3139 does not have can_admin on tenant:af0be8c3-f8c2-430a-ba2f-06d3edd574ff"},"requestId":"req-58c6f372-8da1-45bf-ac11-8159c21fa973"}}

The TypeScript client gives { code: 'auth', reason: 'forbidden' } with that message. Python raises AuthError, with server_code permission-denied.

The console, by role

The console offers only what your role lets you do. It reads that from GET /v1/identity/me/permissions (What you may do). The server still checks every call.

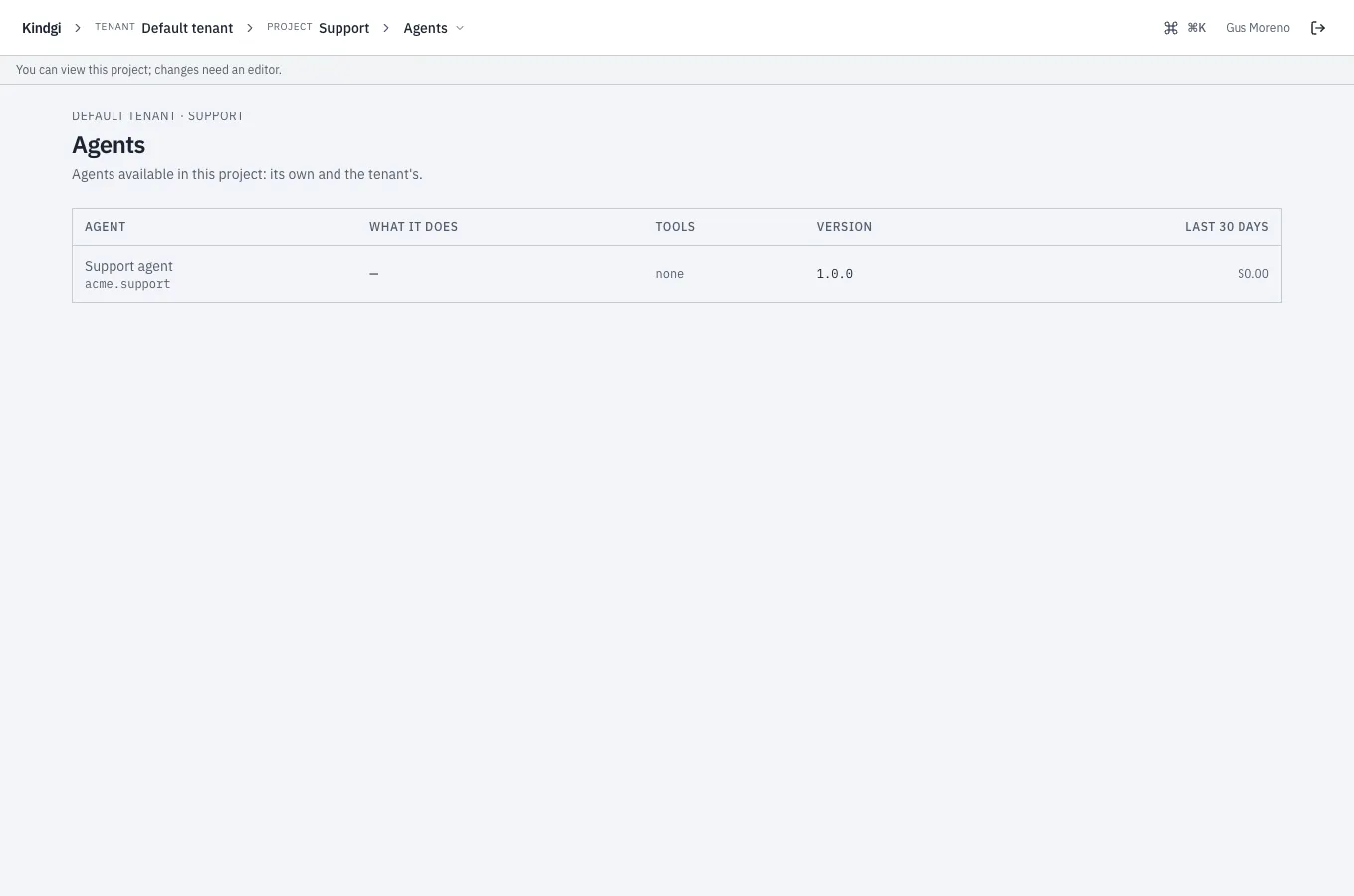

• A project's viewer reads its pages and takes no action in them. A line under the console's header says so on each of the project's pages: "You can view this project; changes need an editor." When a tenant admin set the tenant's own line, console.readOnlyNotice, it shows instead, such as "Ask Ana Ruiz for edit access."
• An editor may also "run agents and flows, work on agent versions, publish data blocks, judge runs, compare versions on test sets", in the console's words. An agent's page offers them Register new version and Start run, which a viewer's doesn't.
• A project admin may also "promote versions, register agents and tools, build test sets, rescore comparisons, set judge classes", and changes who works in the project (Members).
• The tenant's sections show to those they're for:
  • People, Service accounts, Policies, Webhooks, Sign-in, Access audit and the like, to tenant admins;
  • the Inbox and Approvals, to reviewers;
  • Teams, to tenant admins and anyone in a team.

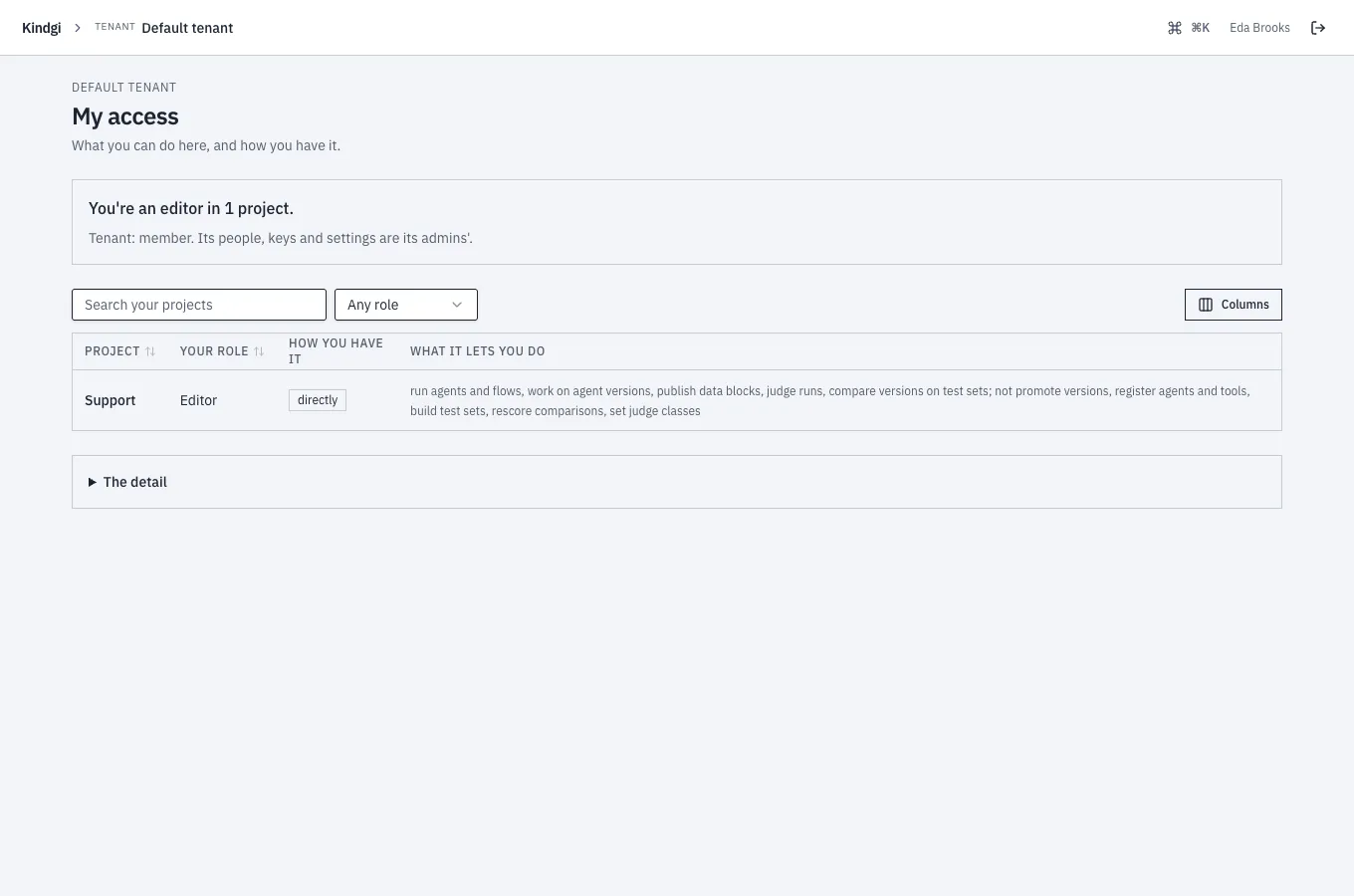

My access, in the tenant's sections, is what you may do and how you have it. It starts with a sentence, such as "You're an editor in 1 project." Then it has your tenant role ("Tenant: member. Its people, keys and settings are its admins'."), and your reviewer role if you have one. Last is a table of your projects: your role, how you have it, and what it lets you do and doesn't. You can have a role directly, through a team, as an admin of the org, or as a tenant admin. The detail holds your ids and what each role allows on each kind of object.

Project memberships

A project's members have a role: owner, admin, editor or viewer. Each includes the next ones: an owner is also an admin, an editor and a viewer. A role given as member before it was retired still reads back as member and grants what viewer does. Giving it is a 400 that says to use viewer. An API key's member role is a different one, and stays (People, API keys and service accounts). Adding, changing or removing a membership changes OpenFGA too:

curl -X POST "$KINDGI_API_URL/v1/projects/<project-id>/memberships" \
  -H "Authorization: Bearer $KINDGI_API_TOKEN" -H 'content-type: application/json' \
  -d '{"userId":"<user-id>","role":"editor"}'

• <project-id> is the project's id, and <user-id> the person's.
• role is their role on the project: owner, admin, editor or viewer.
• KINDGI_API_URL is the runtime's address, and KINDGI_API_TOKEN your API key.

You can name the person by email instead of userId. It matches one of the tenant's people, whatever its case (Add a person). PATCH …/memberships/<user-id> with {"role":"viewer"} changes the role, and DELETE …/memberships/<user-id> removes the member. In the clients, the calls are projects.memberships.add, updateRole and remove, with update_role in Python. Changing members takes admin on the project: a tenant admin, or the project's own admins.

Adding someone who's a member already keeps their role. The same role answers 201 with the existing membership; another one is 409 membership-exists, with the role they hold in details.role. Use PATCH to change it.

Listing a project's members takes write on it: its editors and admins. A viewer sees the project, not who else works in it, and reads their own roles through their grants (GET /v1/identity/users/<user-id>/grants).

In the console, a project's admins do this on its Members page: see In the console: Members.

Teams

A team is a group of the tenant's people, each in it as a member or an admin. A tenant admin makes one with POST /v1/teams, giving a name, a slug and an optional description, and holds its admin role. Its admins, and tenant admins, add and take out its people (…/teams/<team-id>/memberships), change their roles, and rename it (PATCH /v1/teams/<team-id>). A team's role on a project reaches everyone in it (Team grants).

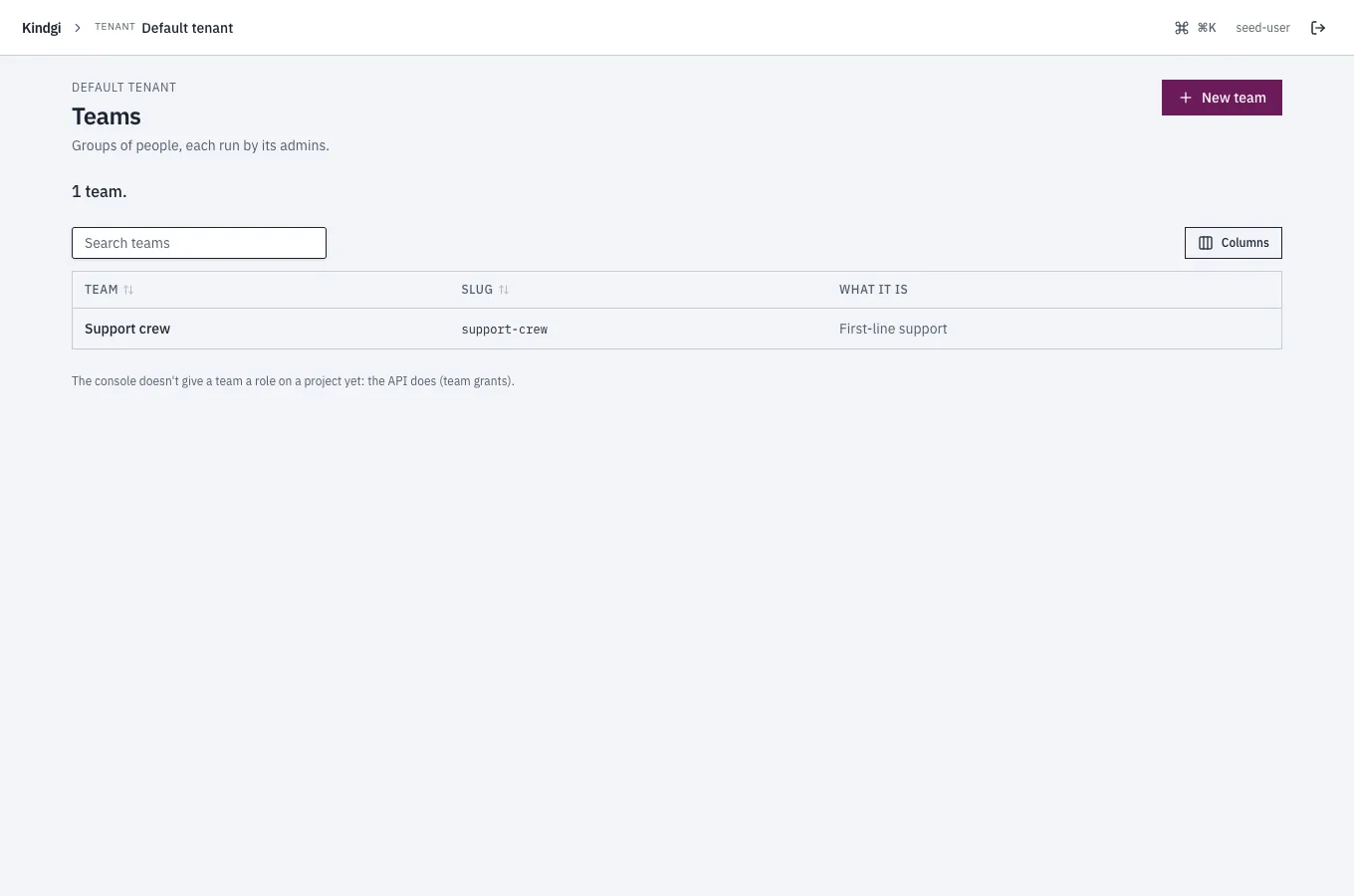

In the console: Teams

Teams, in the tenant's sections, shows to tenant admins and anyone in a team, with the teams each may see. A tenant admin makes one with New team: "A group of people, run by its admins: they decide who is in it. You add the first people on its page." It takes a name, a slug ("Lowercase letters, digits and hyphens; unique in the tenant.") and what the team is.

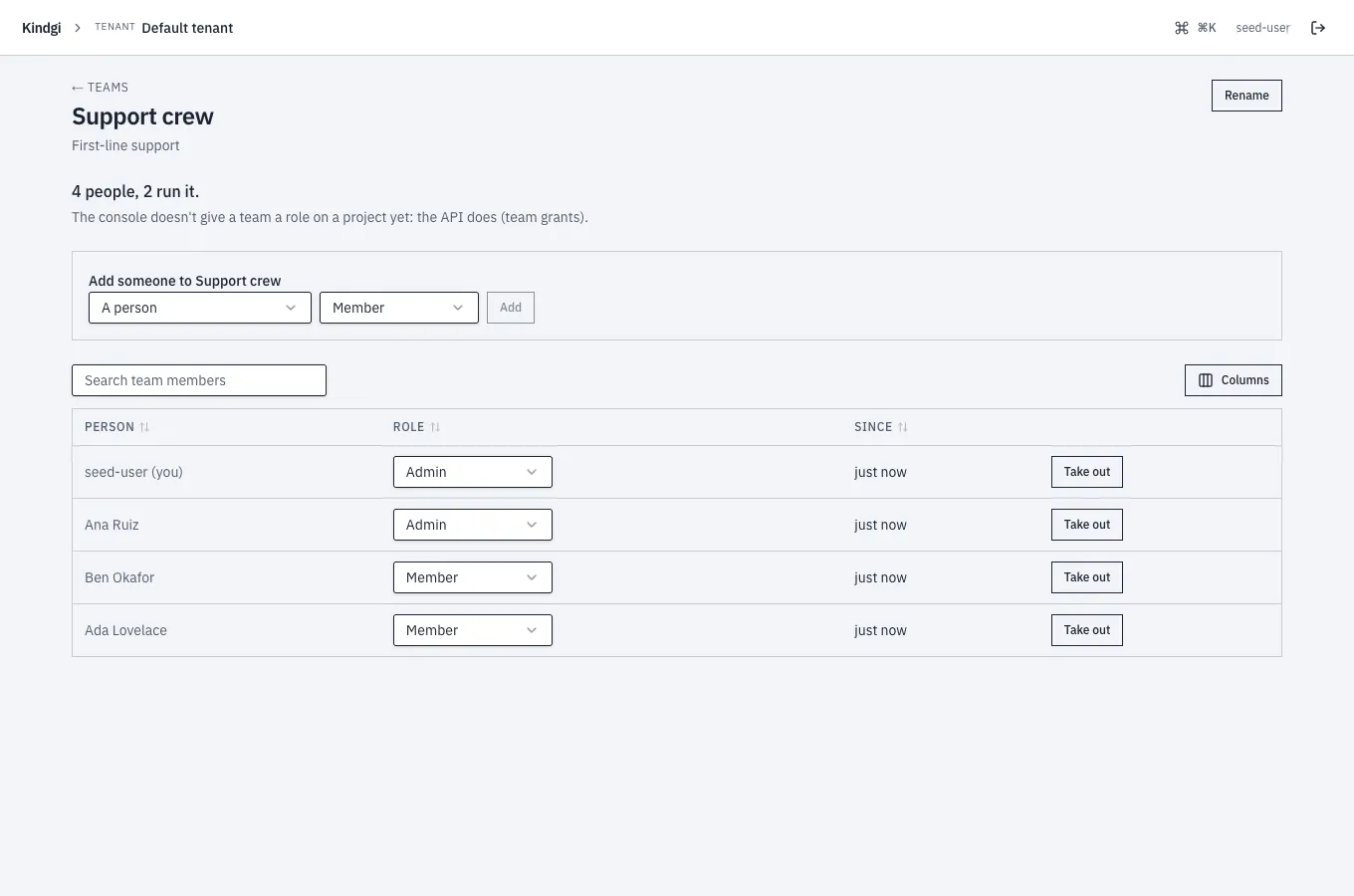

A team's page, for its admins and tenant admins, says how many are in it and how many run it, such as "4 people, 2 run it.", and lists them with their role and since when. There they rename it, and the slug stays. They change someone's role, take someone out, which asks first, and add someone from the tenant's people. Finding a person reads the tenant's people, so adding someone takes a tenant admin.

Anyone else in the team sees it, but not who else is in it: "You're in it. Who is in Support crew is shown to its admins."

The console doesn't delete a team, or give one a role on a project: both are the API's. Both Teams pages say so: "The console doesn't give a team a role on a project yet: the API does (team grants)."

Team grants

A team can have a role on a project: viewer, editor or admin. Every member of the team then holds that role there, the team's admins included. A team never owns a project: owner is a person's role.

curl -X POST "$KINDGI_API_URL/v1/projects/<project-id>/team-grants" \
  -H "Authorization: Bearer $KINDGI_API_TOKEN" -H 'content-type: application/json' \
  -d '{"teamId":"<team-id>","role":"editor"}'

• <team-id> is the team's id.
• role is the team's role on the project: viewer, editor or admin.

Giving a team a role takes admin on the project and read on the team: you give your project only to a team you can see. Giving a team admin hands "who works here" to the team's admins, since anyone they add to the team gets it. Adding a role the team already holds answers 201 with the existing grant. Another role is 409 team-grant-exists. PATCH …/team-grants/<team-id> with {"role":"viewer"} changes it, and DELETE …/team-grants/<team-id> takes it away.

In the clients, the calls are projects.teamGrants.list, add, updateRole and remove, or projects.team_grants in Python. teams.projectGrants.list, teams.project_grants.list in Python, lists the projects a team works in.

Who sees the grants:

• A project's team grants (GET …/team-grants): its editors and admins, who have write.
• A team's project grants (GET /v1/teams/<team-id>/project-grants) and its members (GET /v1/teams/<team-id>/memberships): the team's admins and tenant admins. A plain member sees the team, not who else is in it.

Deleting a team removes the access it gave: its members' roles and its project grants. Nobody keeps access through a team that's gone.

Who has access to a project

GET /v1/projects/<project-id>/access lists everyone OpenFGA lets into the project, people and service accounts, with their role and every way in. Here it lists the project's creator, Ana Ruiz and Ben Okafor. Ana is a tenant admin who's also a direct editor. Ben is in the team Support crew, an editor of the project:

{
  "data": [
    {
      "principal": { "kind": "user", "id": "7e8e9ff9-…" },
      "displayName": "seed-user",
      "role": "owner",
      "via": [
        { "kind": "direct", "role": "owner", "joinedAt": "2026-10-10T06:52:18.102Z" },
        { "kind": "tenant-admin" },
        { "kind": "team", "teamId": "8a88aabe-…", "teamName": "Support crew", "role": "editor" }
      ]
    },
    {
      "principal": { "kind": "user", "id": "54293391-…" },
      "displayName": "Ana Ruiz",
      "primaryEmail": "ana@acme.example",
      "role": "admin",
      "via": [
        { "kind": "tenant-admin" },
        { "kind": "direct", "role": "editor", "joinedAt": "2026-10-10T06:52:18.297Z" },
        { "kind": "team", "teamId": "8a88aabe-…", "teamName": "Support crew", "role": "editor" }
      ]
    },
    {
      "principal": { "kind": "user", "id": "06a1dcc9-…" },
      "displayName": "Ben Okafor",
      "primaryEmail": "ben@acme.example",
      "role": "editor",
      "via": [
        { "kind": "team", "teamId": "8a88aabe-…", "teamName": "Support crew", "role": "editor" }
      ]
    }
  ],
  "hasMore": false
}

Excerpt

• role is the highest any way in gives. An admin of the project's org (org-admin) and a tenant admin (tenant-admin) are admins of the project.
• A tenant admin is an admin of every team too, so they're also listed through a team's grant, as Ana and the creator are here.
• A direct role with joinedAt is a membership: change or remove it with …/memberships/<user-id>. One without joinedAt has no membership behind it, such as the creator of a project an older runtime made.
• A team's role is changed on its grant (…/team-grants/<team-id>).

Reading it takes write on the project: its editors and admins. Emails show to its admins only. It's ordered by role, owner first, then by name, and pages like other lists. In the TypeScript and Python clients, it's projects.access.list. A runtime without OpenFGA answers 501 project-access-unsupported.

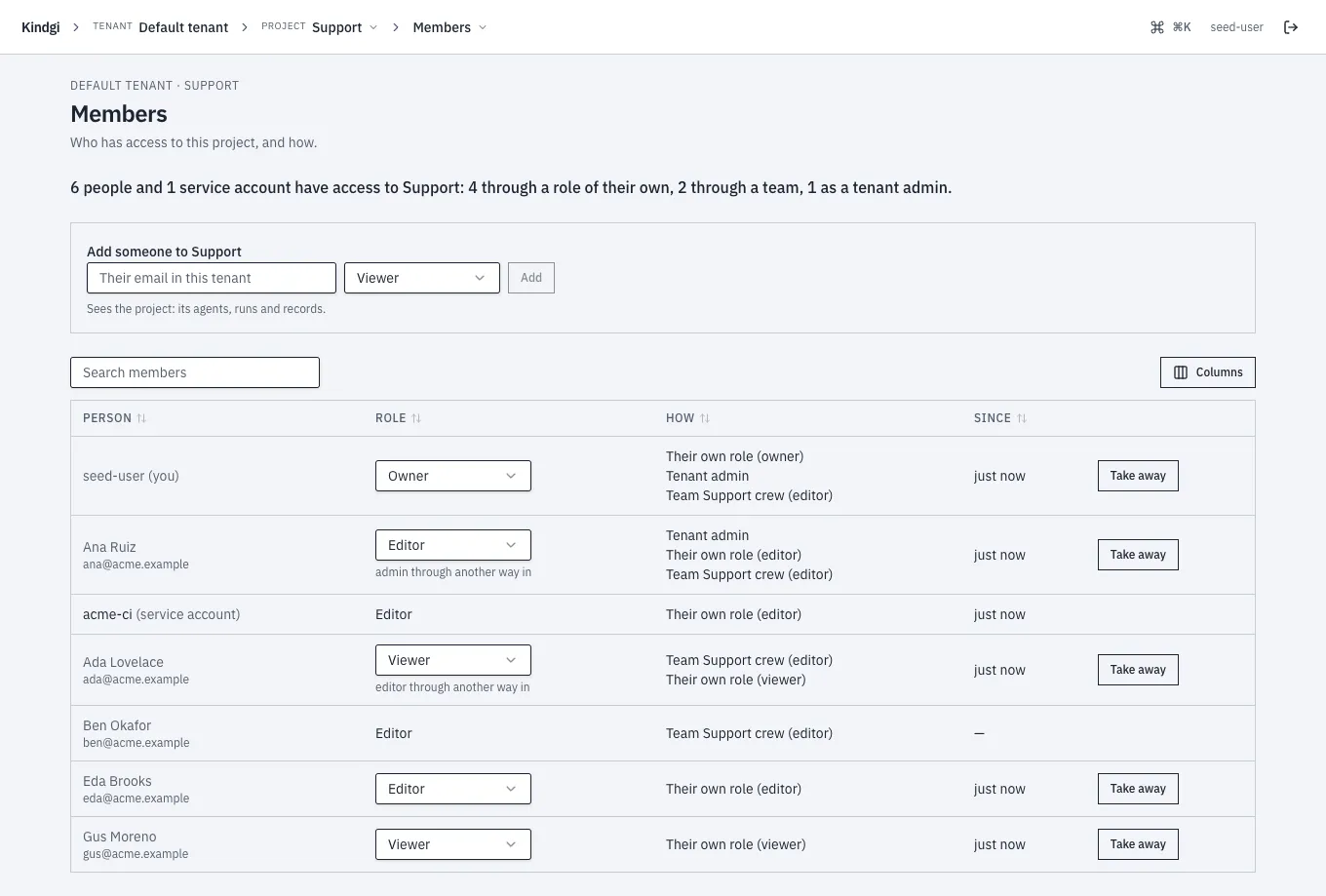

In the console: Members

A project's Members page shows everyone with access, and how, to the project's editors and admins. It starts with a count, each one counted once by the way their role comes from, such as "6 people and 1 service account have access to Support: 4 through a role of their own, 2 through a team, 1 as a tenant admin." Then each one, with their role and every way in: "Their own role (editor)", "Team Support crew (editor)", "Admin of Acme", "Tenant admin". A way the console can't name reads "Another way in". Emails show to the project's admins.

A project admin changes who works there:

• Add someone by their email in the tenant, with one of the four roles. An email that isn't one of the tenant's people isn't added: "No one with that email in this tenant: a tenant admin adds them on People first."
• Change a person's role of their own. When another way in gives them more, it says so under it, such as "editor through another way in". A role through a team, an org or tenant admin is changed where it comes from, and a service account's on its own page.

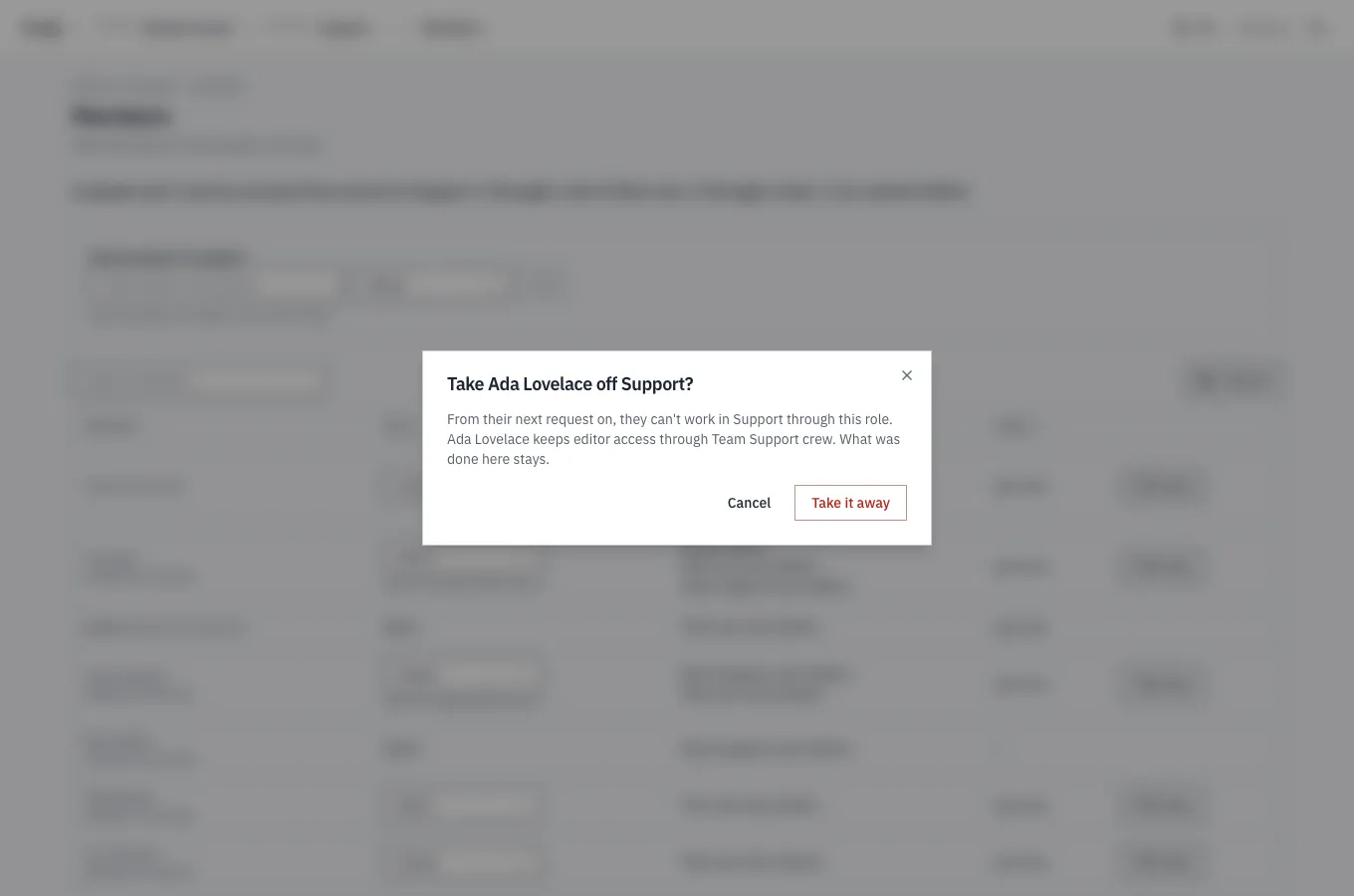

• Take away a person's role of their own. It asks first, and says what stays:

An editor reads the same list, with "Only an admin of Support changes who works here." A viewer doesn't see the section. At its address, they read "Who works in Support is shown to its editors and admins.", and nothing more.

The access audit

Each decision the authorization model makes, allowed or denied, is kept. So is a refusal the API answers from its own checks. GET /v1/audit/authz lists them, oldest first, for a tenant admin. order=desc lists the newest first, and its cursor goes on in that order: order: 'desc' in TypeScript, order="desc" in Python. They're kept for good, unless the runtime purges audit events. With KINDGI_COMPLIANCE_CLASSIFIER=shipped, it purges allowed ones after 90 days and denied ones after 365 (Audit events).

{
  "timestamp": "2026-10-06T13:25:01.475Z",
  "actorSubject": "user:315d1376-7fbf-4310-83ba-11f204831423",
  "action": "admin",
  "resource": "project:2358e0ee-b8ba-42fb-9704-781f14b2351f",
  "outcome": "allowed",
  "reason": "actor user:315d1376-7fbf-4310-83ba-11f204831423 has can_admin on project:2358e0ee-b8ba-42fb-9704-781f14b2351f",
  …
}

Excerpt

actorSubject, action, resource, outcome (allowed or denied), from, to and runId narrow the list.

Refusals the API decides before it asks the authorization model are kept too, on runtime 0.1.6 or later, with a reason that says which check refused:

• what the caller's API key rules out: a member key asking for a tenant admin's action, a key limited to a project acting on another project's resource, a key without the capability a write needs (env:write, secrets:write, …);
• a request that names a project other than its key's, and a key limited to a project minting one that isn't (key-project-mismatch);
• minting a key with capabilities you don't hold;
• a caller who isn't a reviewer, on the approvals routes, or who may not judge as a restricted judge class (judge-class-not-allowed);
• the operator's identity-provider lock (identity-providers-operator-managed);
• reading the deployment's license (GET /v1/license) or its use (GET /v1/license/usage) without its own token or a system key holding system:license, unless you're an admin of the one tenant it serves reading the license (license-operator-only);
• console token sign-in's refusals (token-sign-in-not-allowed, token-sign-in-off);
• a stdio MCP endpoint where the deployment runs no commands (host-access-denied).

Never kept, since they don't refuse the caller: signer-not-trusted, csrf-origin-mismatch and role-exceeds-principal, a limit on the key being minted. Nor is a refusal of a request with no principal behind it: a public run token used outside its two progress routes, or judging without a user or a service token. A 401, for an unknown caller, never is.

In the console

Access audit, for tenant admins, lists the same decisions, 50 at a time, newest first. Tenant admins are the only people its API answers. Next page leads to the older ones. A denied one has a ✗ and a red row. Narrow the list by who, on what, action, result (allowed or denied), and time with From and To, which are in UTC like the times in the list. The filters are in the page's address, so you can copy it to share what you see. Clicking a row shows the decision: allowed or denied, the part that failed, such as actor, how long the check took, the reason, the request's correlation id, and the check it asked OpenFGA, which is the evidence.

Next

• People, API keys and service accounts: add the people and accounts that authorization checks.
• Turn on sign-in: how people sign in to the console.
• Back up and restore the runtime's database: back up OpenFGA's database with the runtime's.
