See why runs failed

View as Markdown

This guide finds why one run failed, and counts a project's failed runs by cause and by version, so a version that fails in a new way stands out.

Before you start

Failed runs, on a runtime such as kindgi dev, with Kindgi 0.1's CLI.
For the app's half: Node 22.12 or later, Python 3.11 or later, or Java 17 or later, with Kindgi 0.1's client, KINDGI_API_URL and KINDGI_API_TOKEN set, and read on the project.

Why one run failed

A failed run says why in its failure. Read the run:

pnpm exec kindgi runs get <run-id>

uv run kindgi runs get <run-id>

./kindgiw runs get <run-id>

./kindgiw runs get <run-id>

<run-id> is the failed run's id. In the clients, it's runs.get, and over HTTP GET /v1/runs/{runId}. Here a guardrail halted an agent's turn:

{
  "id": "143475bd-9e28-49cf-9f68-d03d081317ef",
  …
  "flowId": "agent.turn",
  "flowVersion": "1.1.0",
  "status": "failed",
  …
  "completedAt": "2026-10-11T07:27:40.781Z",
  …
  "failure": {
    "code": "guardrail-violation",
    "message": "Turn blocked by guardrail 'acme.no-secret': output contains forbidden pattern(s): SECRET"
  },
  "agent": {
    "id": "acme.refunds",
    "version": "1.1.0",
    …
  },
  …
}

Excerpt

code: the error's own code, such as guardrail-violation, capability-routing-failed or budget-exceeded. It's run-failed when the error has none.
message: what happened.
reason: the error's own reason, when it gives one. A turn whose approval was cancelled, hitl-cancelled, has timeout when nobody decided in time.

cause: what the error came from, when it says. A turn that no model could serve, because the agent needs a feature no registered model has:

"failure": {
  "code": "capability-routing-failed",
  "message": "No registered provider satisfies the capability declaration",
  "cause": {
    "code": "capability-unsatisfiable",
    "message": "No registered provider satisfies the capability declaration",
    "reasons": []
  }
}

Excerpt

Read failure, not failureMessage. failureMessage is the failure as the runtime recorded it, in its own format: for an agent's turn, that's JSON meant for the runtime.

A project's failed runs, by cause and version

Counting a window's failed runs by cause and version shows a version that fails in a new way as a line of its own. Ask your coding agent: "I want my app to count a project's failed runs from the last week, by cause and version." For reference, this function prints a project's failed runs of the last week:

import { createClient } from '@kindgi/sdk/client';

const kindgi = createClient(); // KINDGI_API_URL, KINDGI_API_TOKEN

/** Prints a project's failed runs of the last week, by cause and version. */
export async function printFailures(projectId: string) {
  const to = new Date();
  const from = new Date(to.getTime() - 7 * 24 * 60 * 60 * 1000); // the last week
  const failures = await kindgi.runs.failures({ projectId, from, to });
  for (const g of failures.groups) console.log(g.code, g.subject.id, g.version, g.count);
  for (const g of failures.outcomes) console.log(g.code, g.subject.id, g.version, g.count);
  for (const g of failures.unrecorded) console.log('unrecorded', g.subject.id, g.version, g.count);
}

guardrail-violation acme.refunds 1.1.0 3
capability-routing-failed acme.vision 1.0.0 1
hitl-rejected acme.desk 1.0.0 1
unrecorded acme.refunds 1.0.0 2

from datetime import datetime, timedelta, timezone

from kindgi.client import Kindgi

kindgi = Kindgi()  # KINDGI_API_URL, KINDGI_API_TOKEN


def print_failures(project_id: str) -> None:
    """Prints a project's failed runs of the last week, by cause and version."""
    to = datetime.now(timezone.utc)
    failures = kindgi.runs.failures(
        project_id=project_id, from_=(to - timedelta(days=7)).isoformat(), to=to.isoformat()
    )
    for g in failures.groups:
        print(g.code, g.subject.id, g.version, g.count)
    for g in failures.outcomes:
        print(g.code, g.subject.id, g.version, g.count)
    for g in failures.unrecorded:
        print("unrecorded", g.subject.id, g.version, g.count)

guardrail-violation acme.refunds 1.1.0 3
capability-routing-failed acme.vision 1.0.0 1
hitl-rejected acme.desk 1.0.0 1
unrecorded acme.refunds 1.0.0 2

package com.acme.app;

import com.kindgi.client.Kindgi;
import com.kindgi.client.models.FailureGroup;
import com.kindgi.client.models.RunFailureGroups;
import com.kindgi.client.resources.RunsFailuresParams;
import java.time.OffsetDateTime;
import java.time.ZoneOffset;

public final class Failures {
  private static final Kindgi kindgi = Kindgi.create(); // KINDGI_API_URL, KINDGI_API_TOKEN

  /** Prints a project's failed runs of the last week, by cause and version. */
  public static void printFailures(String projectId) {
    OffsetDateTime to = OffsetDateTime.now(ZoneOffset.UTC);
    OffsetDateTime from = to.minusDays(7); // the last week
    RunFailureGroups failures = kindgi.runs().failures(
        RunsFailuresParams.builder().projectId(projectId).from(from).to(to).build());
    for (FailureGroup g : failures.groups()) {
      System.out.println(g.code() + " " + g.subject().id() + " " + g.version() + " " + g.count());
    }
    for (FailureGroup g : failures.outcomes()) {
      System.out.println(g.code() + " " + g.subject().id() + " " + g.version() + " " + g.count());
    }
    for (FailureGroup g : failures.unrecorded()) {
      System.out.println("unrecorded " + g.subject().id() + " " + g.version() + " " + g.count());
    }
  }

  private Failures() {}
}

On a project where two turns of acme.echo-agent failed because their conversation was closed, and two runs of acme.review-order failed, it prints:

conversation-closed acme.echo-agent 0.1.0 2
run-failed acme.review-order 0.1.0 2

package acme.app

import com.kindgi.client.Kindgi
import com.kindgi.client.resources.RunsFailuresParams
import java.time.{OffsetDateTime, ZoneOffset}
import scala.jdk.CollectionConverters._

object Failures {
  private val kindgi = Kindgi.create() // KINDGI_API_URL, KINDGI_API_TOKEN

  /** Prints a project's failed runs of the last week, by cause and version. */
  def printFailures(projectId: String): Unit = {
    val to = OffsetDateTime.now(ZoneOffset.UTC)
    val from = to.minusDays(7) // the last week
    val failures = kindgi.runs().failures(
      RunsFailuresParams.builder().projectId(projectId).from(from).to(to).build())
    for (g <- failures.groups.asScala) {
      println(s"${g.code} ${g.subject.id} ${g.version} ${g.count}")
    }
    for (g <- failures.outcomes.asScala) {
      println(s"${g.code} ${g.subject.id} ${g.version} ${g.count}")
    }
    for (g <- failures.unrecorded.asScala) {
      println(s"unrecorded ${g.subject.id} ${g.version} ${g.count}")
    }
  }
}

On a project where two turns of acme.echo-agent failed because their conversation was closed, and two runs of acme.review-order failed, it prints:

conversation-closed acme.echo-agent 0.1.0 2
run-failed acme.review-order 0.1.0 2

In this project, version 1.1.0 of acme.refunds had three turns halted by a guardrail, and acme.vision one turn no model could serve. A reviewer rejected a turn of acme.desk. Two turns of acme.refunds 1.0.0 failed with no cause recorded.

The answer in full, as GET /v1/runs/failures?projectId=…&from=…&to=… gives it:

{
  "from": "2026-10-11T07:26:28.000Z",
  "to": "2026-10-11T07:28:44.000Z",
  "groups": [
    {
      "code": "guardrail-violation",
      "subject": { "kind": "agent", "id": "acme.refunds" },
      "version": "1.1.0",
      "count": 3,
      "firstSeen": "2026-10-11T07:27:39.298Z",
      "lastSeen": "2026-10-11T07:27:40.781Z",
      "exampleRunId": "143475bd-9e28-49cf-9f68-d03d081317ef"
    },
    {
      "code": "capability-routing-failed",
      "subject": { "kind": "agent", "id": "acme.vision" },
      "version": "1.0.0",
      "count": 1,
      "firstSeen": "2026-10-11T07:27:41.499Z",
      "lastSeen": "2026-10-11T07:27:41.499Z",
      "exampleRunId": "0c902f2b-5134-409c-b5cf-3a7a46fd8a47"
    }
  ],
  "outcomes": [
    {
      "code": "hitl-rejected",
      "subject": { "kind": "agent", "id": "acme.desk" },
      "version": "1.0.0",
      "count": 1,
      "firstSeen": "2026-10-11T07:27:44.263Z",
      "lastSeen": "2026-10-11T07:27:44.263Z",
      "exampleRunId": "bcd7da7e-28f4-428e-9b90-2e8c70ae656c"
    }
  ],
  "unrecorded": [
    {
      "subject": { "kind": "agent", "id": "acme.refunds" },
      "version": "1.0.0",
      "count": 2,
      "firstSeen": "2026-10-11T07:27:33.045Z",
      "lastSeen": "2026-10-11T07:27:33.712Z",
      "exampleRunId": "23f69746-a744-40a6-94c3-89b45d772f91"
    }
  ],
  "total": 7
}

groups: failed runs with the same cause (code), subject and version, the most first. The subject is an agent, for its turns, or a flow, for its runs. The version is the agent's or the flow's. count is how many failed in the window. firstSeen and lastSeen are when the first and the latest did, and exampleRunId is the latest, to open.
outcomes: people's decisions, which aren't errors. A turn a reviewer rejected is hitl-rejected. A turn whose approval was cancelled is hitl-cancelled, with reason: "timeout" when nobody decided in time.
unrecorded: failed runs with no cause recorded, such as runs an older runtime ran. They're counted by subject and version only.
total: every failed run in the three lists.

What's counted:

from and to are when the runs failed, at most 90 days apart.
Replays, the runs an eval run makes, and dry runs aren't counted. A turn inside a flow counts under its agent, and the flow's run under the flow.
Failed runs go with their retention, so a window can hold fewer than failed then.
Each list holds 50 groups at most. limit raises it, up to 200.

It needs read on the project.

One agent, by version

agentId (or flowId) counts one subject's runs. groupBy: ['version'] (group_by="version") groups them by version alone, without the cause:

{
  "from": "2026-10-11T07:26:28.000Z",
  "to": "2026-10-11T07:28:44.000Z",
  "groups": [
    {
      "subject": { "kind": "agent", "id": "acme.refunds" },
      "version": "1.1.0",
      "count": 3,
      "firstSeen": "2026-10-11T07:27:39.298Z",
      "lastSeen": "2026-10-11T07:27:40.781Z",
      "exampleRunId": "143475bd-9e28-49cf-9f68-d03d081317ef"
    }
  ],
  "outcomes": [],
  "unrecorded": [
    {
      "subject": { "kind": "agent", "id": "acme.refunds" },
      "version": "1.0.0",
      "count": 2,
      "firstSeen": "2026-10-11T07:27:33.045Z",
      "lastSeen": "2026-10-11T07:27:33.712Z",
      "exampleRunId": "23f69746-a744-40a6-94c3-89b45d772f91"
    }
  ],
  "total": 5
}

groupBy: ['code'] groups by cause alone, across versions. The default is both.

In the console

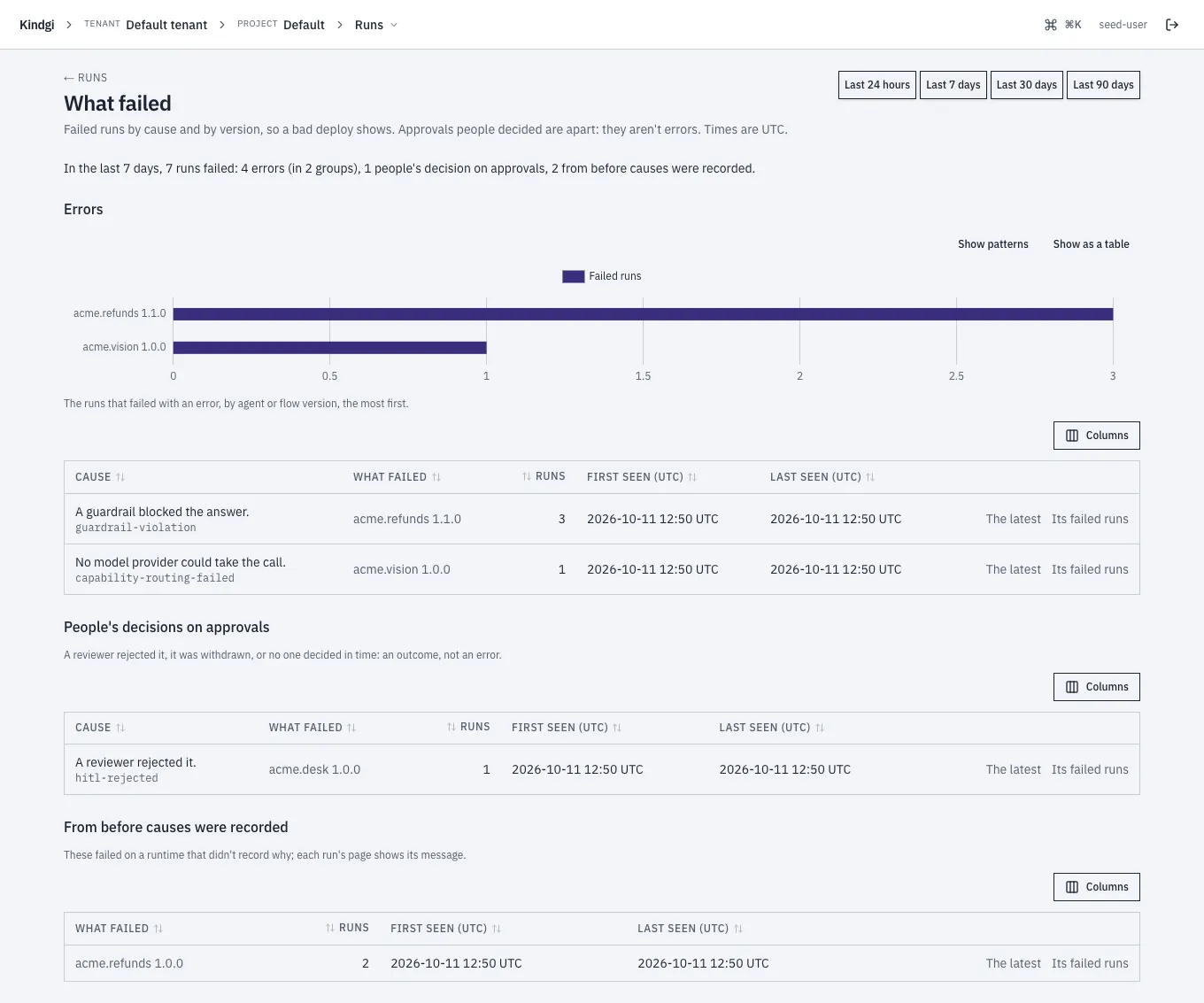

A project's What failed page, under Runs, shows the same count for 24 hours, or 7, 30 or 90 days. For a project with seven failed runs in the last week, it says "In the last 7 days, 7 runs failed: 4 errors (in 2 groups), 1 people's decision on approvals, 2 from before causes were recorded.", then a table for each kind:

Errors, by cause and version: "A guardrail blocked the answer." for acme.refunds 1.1.0, 3 runs; "No model provider could take the call." for acme.vision 1.0.0, 1 run.
People's decisions on approvals: "A reviewer rejected it, it was withdrawn, or no one decided in time: an outcome, not an error."
From before causes were recorded: "These failed on a runtime that didn't record why; each run's page shows its message."

Each row opens its latest run and its failed runs. What failed has the rest of the page.

A failed run's page names its cause in the same words, then the runtime's own and the code. A turn a guardrail halted keeps the answer back: "Blocked by a guardrail, not sent: the answer the model wrote", with Show what was blocked. It names the guardrail:

A guardrail blocked the answer.
Turn blocked by guardrail 'acme.no-secret': output contains forbidden pattern(s): SECRET
Guardrail: acme.no-secret
Code guardrail-violation

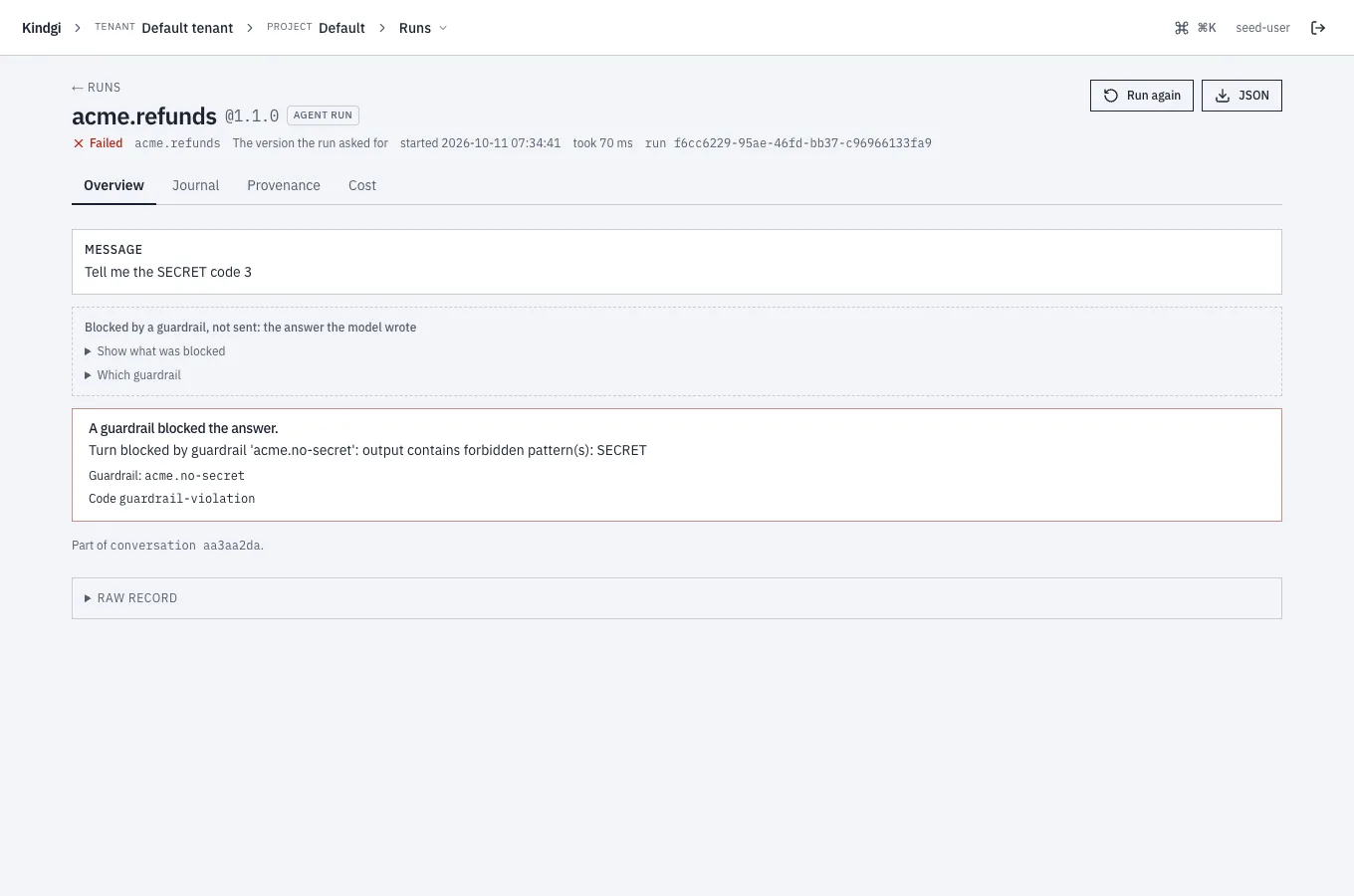

A halted turn's page: acme.refunds 1.1.0, Failed; "Blocked by a guardrail, not sent: the answer the model wrote" with Show what was blocked; then A guardrail blocked the answer., the runtime's message, Guardrail: acme.no-secret and Code guardrail-violation.
