Publish the addresses your calls come from

View as Markdown

Some sites admit calls only from addresses they know: a shop's API behind a firewall, an MCP server with an allowlist, a webhook receiver. A runtime can publish the IP addresses its calls to other sites come from (runtime 0.1.9 or later), and anyone who belongs to one of its tenants prints them with kindgi egress. Publishing them changes nothing about where calls go or where they come from.

Before you start

Section titled “Before you start”
  • Addresses that stay the same, where your runtime's calls leave your network. On Cloud Run, that's the module's static NAT address.
  • The runtime's settings: kindgi.env for Self-host Kindgi, or the module's server_env on Cloud Run.
  • For kindgi commands: Kindgi 0.1's CLI, which runs from any folder as npx --yes @kindgi/cli@0.1 (Install). Inside a pack project, pnpm exec kindgi runs the project's pinned CLI instead.

Publish them

Section titled “Publish them”

Two settings, each a comma-separated list of IPv4 or IPv6 addresses:

  • KINDGI_EGRESS_SERVER_ADDRESSES: where the server's own calls come from, such as its calls to MCP servers and model providers, and its webhook deliveries.
  • KINDGI_EGRESS_DEPLOYMENT_ADDRESSES: where calls made by the code deployed to it come from, such as its tools' calls.
Terminal window
KINDGI_EGRESS_SERVER_ADDRESSES=192.0.2.10
KINDGI_EGRESS_DEPLOYMENT_ADDRESSES=198.51.100.20,2001:db8::1

Then restart the runtime. A value that isn't an IP address, such as a range (192.0.2.0/24) or an address with an interface (2001:db8::1%eth0), stops it from starting, with an error that names the setting and the entry it can't read. Here, KINDGI_EGRESS_SERVER_ADDRESSES=nat.acme.example:

KINDGI_EGRESS_SERVER_ADDRESSES must be comma-separated IP addresses. Got "nat.acme.example".

Each address shows once, blank entries are left out, and with both settings unset or empty nothing is published.

The addresses are the runtime's, the same for every tenant it serves. Publish only addresses your calls really leave from, and that stay the same: a site that admits them refuses calls from any other.

On Cloud Run

Section titled “On Cloud Run”

With network_mode = "direct", the server's calls to the internet leave through the module's Cloud NAT. nat_static_ip = true reserves its address, and terraform output nat_ip prints it. Put it in server_env, then run terraform apply again:

server_env = {
  # ...
  KINDGI_EGRESS_SERVER_ADDRESSES = "192.0.2.10"
}
Excerpt

Without nat_static_ip, Google picks the NAT's address and may change it, so there's none to publish. Your pack's calls, and with network_mode = "connector" the server's calls to the internet too, leave through Cloud Run's own egress, which has no fixed address.

See them

Section titled “See them”
Terminal window
npx --yes @kindgi/cli@0.1 egress
CALLS        ADDRESS
───────────  ─────────────
server       192.0.2.10
deployments  198.51.100.20
deployments  2001:db8::1


Every tenant on this deployment calls from these addresses: admitting them admits all of their calls, so keep your site's own credentials too.

  • CALLS says whose calls come from the address: server for the server's own, deployments for the deployed code's.

  • --json prints both lists, for a script that writes a site's firewall rule:

    {
      "server": [
        "192.0.2.10"
      ],
      "deployments": [
        "198.51.100.20",
        "2001:db8::1"
      ]
    }

When the runtime publishes none, it says so, and exits 0:

This deployment publishes no egress addresses.

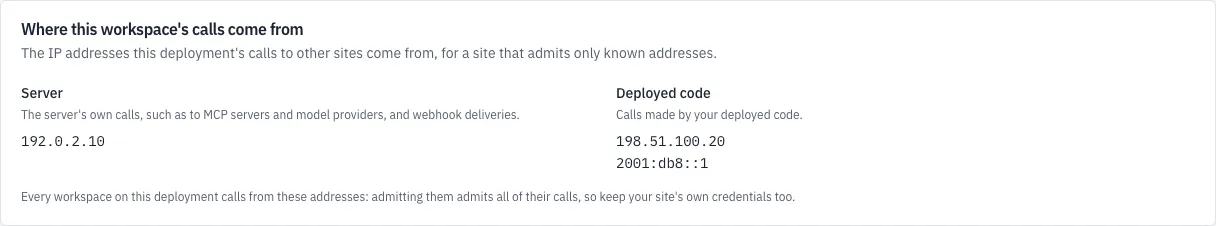

Anyone who belongs to the tenant reads them: every person added to it, and a service account given --tenant-member or --tenant-admin (Service accounts). They're in GET /v1/tenant's egress, which is absent when none are published. In the TypeScript client, it's tenant.get()'s egress. In the console, the workspace's home page shows them under Where this workspace's calls come from:

Where this workspace's calls come from: Server, the server's own calls, 192.0.2.10; Deployed code, calls made by your deployed code, 198.51.100.20 and 2001:db8::1; then every workspace on this deployment calls from these addresses

Admit them at a site

Section titled “Admit them at a site”
  • A site your deployed code calls, such as a shop's API or a service of your own, admits the deployments addresses.
  • An MCP server the runtime calls, or a webhook receiver, admits the server addresses.

Every tenant on the runtime calls from the same addresses, so admitting them admits every tenant's calls, not only yours. Keep the site's own check too: its API key, or a webhook's signature (Verify a webhook).
